Nitrogen Evaporator Bio-eVap

Takahe Nitrogen Evaporator Bio-eVap

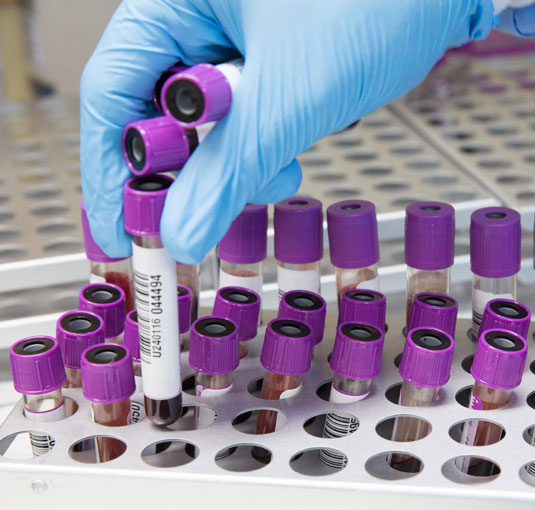

Ria Vials

Bio-eVap 100 and 144 position Nitrogen Evaporator

One of our most significant contributions to the CRO industry is the Bio-eVap 144 sample Nitrogen Evaporator, an innovative approach to process large number of small volume samples. With number of samples ranging from 100 to 144, this evaporator is designed for bio-analytical studies requiring simultaneous and similar process for reproducibility. Using latest technologies, better evaporation rates have have reduced Nitrogen consumption while still affording uniform evaporation over all 144 samples. This also lowers the load on Nitrogen generators or Nitrogen plant. In addition, processing is truly hands-free with the Dual pressure option available on the Bio-eVap 144 position system, by setting initial and operational pressures at the start of the method. In doing so any kind of contamination caused due to excess initial pressure is eliminated.

Features

  • Unattended operation using 144 sample Nitrogen Evaporator
  • Double Pressure setting to eliminate contamination risk during evaporation process
  • In-built alarms with customizable setting for over temperature alert
  • Sensor for Door Open – triggering alert
  • Different interchangeable racks available for tube sizes
  • Controlled water bath adjustable from ambient to 70°C
  • Built-in nitrogen regulator
  • LED display for better visibility under fume hood
  • Convenient size — Large sample processing in same space as a 50 sample processor
  • Removable nozzle tips for easy sonication. No realignment required.
  • Fixed Nozzle tips available as an option.
  • Safety Features include Audio and Display Alarms; Auto Stop of process on Door Open etc.
  • Exhaust open to atmosphere or within Fume Hood.
  • Auto Water Drain.
  • Aluminium build for rust control.

Unique features are

  • Set programme cannot be changed once process has begun.
  • Row selectors switches are specially identified for flow control.
  • Rack for the Bio-eVap 144 can be used with TAKAHE SPE speX 144.
  • Printing and data storage facility available on request.

Technical Specifications

Feature Bio-eVap 100 position Nitrogen Evaporator Bio-eVap 144 (Dual Pressure) 144 position Nitrogen Evaporator
Maximum Number of Samples/positions 100
Matrix: 10 X 10		 144
Matrix: 12 X 12
Sample Volume 1.5 mL, 4 mL, Upto 15 mL 1.5 mL, 4 mL, Upto 12 mL
Rack Supplied Any one Rack listed based on requirement. (additional racks can be ordered separately) Any one Rack listed based on requirement. (additional racks can be ordered separately)
Water Bath Temperature Ambient to 70°C. Ambient to 70°C.
Timer Range 1 min to 9. 50 hours/indefinite 1 min to 9. 50 hours/indefinite
Gas Supply Requirements Inlet pressure 100 psi Inlet pressure 100 psi
Gas Regulator Manually adjustable Initial and Final Pressure Manually set
Gas Flow required 200 LPM 260 LPM
Gas Gauge Range 0 – 56 psi | 0-4 kg | 0- 3.9 bar 0 – 56 psi | 0-4 kg | 0- 3.9 bar
Technology Vortexing Vortexing
Gas Control Each Manifold can be turned ON as required. No multiple punches on Keyboard
Fume Extraction Exhaust In-built, Vented out. Duct hose provided
Power Requirements 230 VAC at 50 Hz (110 VAC – available on request)
Dimensions (WxDxH) in cm 37 X 70 X 25
Open Door Ht: 68 cm		 57 X 57 X28
Open Door Ht: 68 cm
Net Weight 17 kg 18.5
Shipping Weight 30 kg 35 Kg
Certifications

2004/22/EC Measuring Instruments Directive.

2014/35/EU Low Voltage Directive

2009/105/EC Simple Pressure Vessels.

Test Tubes

Capacity in mL Dimensions in mm (OD X H)
1.5 mL Eppendorf Micro Centrifuge tubes
4 mL Ria vials 11.5 X 75 mm
15 mL 16 mm X 120 mm
15 mL 15 mL Tarson tube (only for BV 100)
